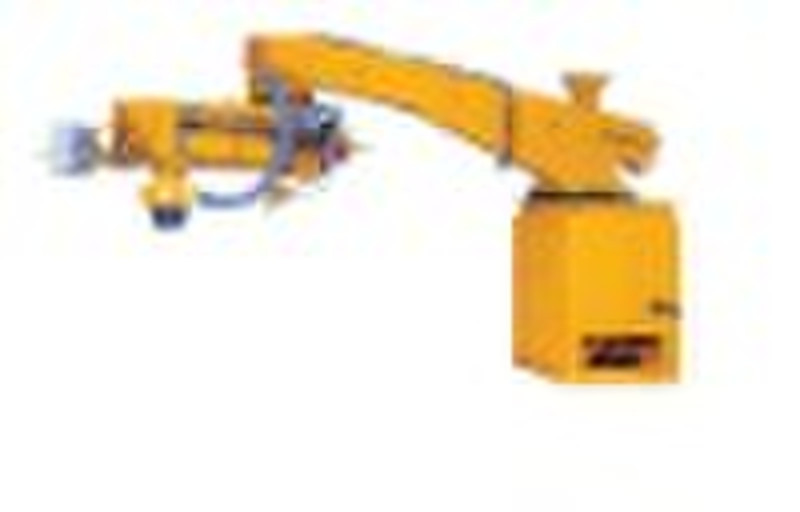

S2812 Movable Resin Sand Mixing Machine

S2812 Movable Resin Sand Mixing Machine On the basis of absorbing the advanced foreign technology, our company developed many kinds of molding, core-making and reclamation complete sets of equipment and every kind of conveying equipment furfuran resin-bonded sand, and grease-hardening water glass sand. They are exquisitely made. With main components being imported, their performances keep up with the advanced levels of the same products abroad. According ro the users requirements, we can provide the turnkey engineering of every kind of production line complete sets of equipment, including installation and trial run. S285 S2812 S2815 S2820 S2830 S2840 Power of small trolley kw 4.0 4.0 4.0 4.0 4.0 Hydraulic drive 11kW Power of dust collector kw 5.5+0.25 5.5+0.25 5.5+0.25 5.5+0.25 5.5+0.25 5.5+0.25 Power of sand mill kw 5.5 7.5 11.0 11.0 30 22 Gyration radius sand mill mm 1500 1300 1600 1600 2050 2000 Speed of sand mill rpm 730 730 960 730 537 730 Power of sand feeding arm kw _____ 4.0 4.0 5.5 5.5 2.2 Gyration radius of sand feeding arm mm ______1300 3000 3000 5000 6000 Height of sand entry mm 1800 2500 2500 2500 2292 5940 Height of sand exit mm 1200 1600 1600 1600 1520 1800-4800 Power of resin heater kw 2.0 5.0 5.0 5.0 5.0 5.0 Power of resin pump kw 0.6 0.6 0.6 0.6 0.6 0.6 Power of curing agent pump kw 0.4 0.4 0.4 0.4 0.4 0.4 Pressure of compressed air mpa 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 Total power kw 20.25 30.25 33.75 35.25 51.25 46.8
